Amazon Web Services (AWS)

Amazon Web Services (AWS)

World's most comprehensive and broadly adopted cloud platform, offering over 175 fully featured services from data centers globally.Amazon Web Services is a subsidiaryof Amazon providing on-demand cloud computing platforms and APIs to individuals, companies, and governments, on a metered pay-as-you-go basis.Amazon Web Services offers reliable, scalable, and inexpensive cloud computing services. Free to join, pay only for what you use.

Amazon EC2 Instances

Amazon Elastic Compute Cloud (Amazon EC2) is a web service that provides resizable computing capacity—literally, servers in Amazon's data centers—that you use to build and host your software systems.

An instance is a virtual server in the cloud. Its configuration at launch is a copy of the AMI that you specified when you launched the instance.

You can launch different types of instances from a single AMI. An instance type essentially determines the hardware of the host computer used for your instance. Each instance type offers different compute and memory capabilities. Select an instance type based on the amount of memory and computing power that you need for the application or software that you plan to run on the instance. For more information about the hardware specifications for each Amazon EC2 instance type, see Amazon EC2 Instance Types (https://aws.amazon.com/ec2/instance-types/).

You can stop or terminate a running instance at any time.When an instance is stopped, the instance performs a normal shutdown, and then transitions to a stopped state. All of its Amazon EBS volumes remain attached, and you can start the instance again at a later time.


Amazon EC2 Instance Types:

General Purpose: General purpose instances provide a balance of compute, memory and networking resources, and can be used for a variety of diverse workloads. These instances are ideal for applications that use these resources in equal proportions such as web servers and code repositories.

Compute Optimized: Compute Optimized instances are ideal for compute bound applications that benefit from high performance processors. Instances belonging to this family are well suited for batch processing workloads, media transcoding, high performance web servers, high performance computing (HPC), scientific modeling, dedicated gaming servers and ad server engines, machine learning inference and other compute intensive applications.

Memory Optimized: Memory optimized instances are designed to deliver fast performance for workloads that process large data sets in memory. Memory-intensive applications such as open-source databases, in-memory caches, and real time big data analytics.

Accelerated Computing: Accelerated computing instances use hardware accelerators, or co-processors, to perform functions, such as floating point number calculations, graphics processing, or data pattern matching, more efficiently than is possible in software running on CPUs.

Storage Optimized: Storage optimized instances are designed for workloads that require high, sequential read and write access to very large data sets on local storage. They are optimized to deliver tens of thousands of low-latency, random I/O operations per second (IOPS) to applications.

Amazon AMI (Amazon machine Image):

An Amazon Machine Image (AMI) provides the information required to launch an instance. You must specify an AMI when you launch an instance. You can launch multiple instances from a single AMI when you need multiple instances with the same configuration.

An AMI includes the following:

  • One or more Amazon Elastic Block Store (Amazon EBS) snapshots, or, for instance-store-backed AMIs, a template for the root volume of the instance (for example, an operating system, an application server, and applications).
  • Launch permissions that control which AWS accounts can use the AMI to launch instances.
  • A block device mapping that specifies the volumes to attach to the instance when it's launched.

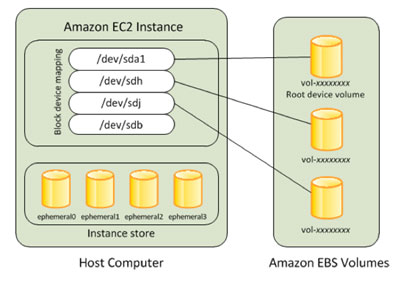

Amazon EBS (Amazon Elastic Block Store):

Amazon Elastic Block Store (Amazon EBS) provides block level storage volumes for use with EC2 instances. EBS volumes behave like raw, unformatted block devices. You can mount these volumes as devices on your instances. EBS volumes that are attached to an instance are exposed as storage volumes that persist independently from the life of the instance.

Types of EBS Volume:

Solid state drives (SSD) — Optimized for transactional workloads involving frequent read/write operations with small I/O size, where the dominant performance attribute is IOPS.

Hard disk drives (HDD) — Optimized for large streaming workloads where the dominant performance attribute is throughput.

Previous generation — Hard disk drives that can be used for workloads with small datasets where data is accessed infrequently and performance is not of primary importance. We recommend that you consider a current generation volume type instead.

You can back up the data on your Amazon EBS volumes to Amazon S3 by taking point-in-time snapshots. Snapshots are incremental backups, which means that only the blocks on the device that have changed after your most recent snapshot are saved.

Amazon EFS (Elastic File System):

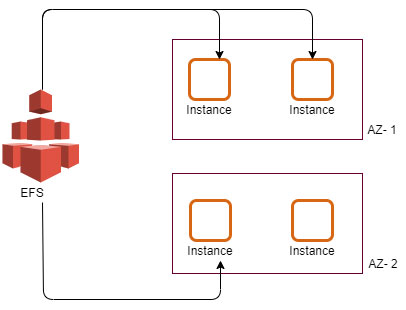

Amazon EFS provides scalable file storage for use with Amazon EC2. You can use an EFS file system as a common data source for workloads and applications running on multiple instances. Amazon Elastic File System (Amazon EFS) provides a simple, scalable, fully managed elastic NFS file system for use with AWS Cloud services and on-premises resources. It is built to scale on demand to petabytes without disrupting applications, growing and shrinking automatically as you add and remove files, eliminating the need to provision and manage capacity to accommodate growth.

Amazon EFS offers two storage classes: the Standard storage class, and the Infrequent Access storage class (EFS IA). EFS IA provides price/performance that's cost-optimized for files not accessed every day. By simply enabling EFS Lifecycle Management on your file system, files not accessed according to the lifecycle policy you choose will be automatically and transparently moved into EFS IA.

Amazon VPC (Virtual Private Cloud):

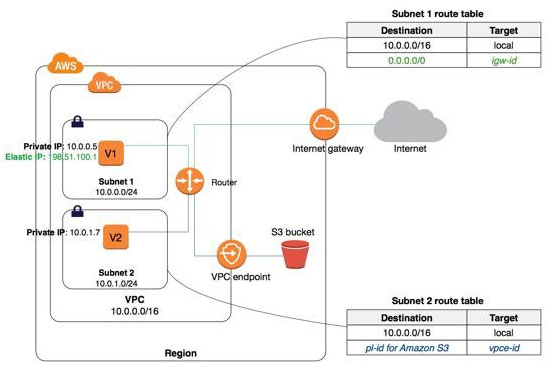

Amazon Virtual Private Cloud (Amazon VPC) enables you to launch AWS resources into a virtual network that you've defined. This virtual network closely resembles a traditional network that you'd operate in your own data center, with the benefits of using the scalable infrastructure of AWS.Amazon VPC is the networking layer for Amazon EC2.The following are the key concepts for VPCs:

Virtual private cloud (VPC) — A virtual network dedicated to your AWS account.

Subnet — A range of IP addresses in your VPC.

Route table — A set of rules, called routes, that are used to determine where network traffic is directed.

Internet gateway — A gateway that you attach to your VPC to enable communication between resources in your VPC and the internet.

VPC endpoint — Enables you to privately connect your VPC to supported AWS services and VPC endpoint services powered by private link without requiring an internet gateway, NAT device, VPN connection, or AWS Direct Connect connection.

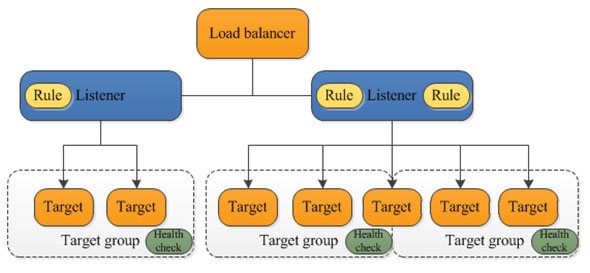

Amazon Elastic Load Balancers:

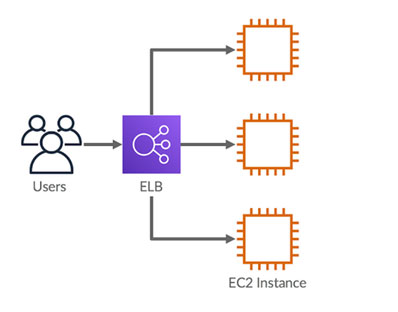

The service that distributes your incoming traffic across multiple targets, such as EC2 instances, containers, and IP addresses, in one or more Availability Zones. It monitors the health of its registered targets, and routes traffic only to the healthy targets.The AWS shared responsibility model applies to data protection in Elastic Load Balancing. As described in this model, AWS is responsible for protecting the global infrastructure that runs all of the AWS Cloud. You are responsible for maintaining control over your content that is hosted on this infrastructure.

Elastic Load Balancing supports the following types of load balancers:

Application Load Balancers: This load balancer distributes incoming application traffic across multiple targets, such as EC2 instances, in multiple Availability Zones. This increases the availability of your application. You add one or more listeners to your load balancer.A listener checks for connection requests from clients, using the protocol and port that you configure. The rules that you define for a listener determine how the load balancer routes requests to its registered targets. Each rule consists of a priority, one or more actions, and one or more conditions.

Network Load Balancers: The load balancer distributes incoming traffic across multiple targets, such as Amazon EC2 instances. This increases the availability of your application. You add one or more listeners to your load balancer.

A listener checks for connection requests from clients, using the protocol and port that you configure, and forwards requests to a target group.

Gateway Load Balancers: A Gateway Load Balancer operates at the third layer of the Open Systems Interconnection (OSI) model, the network layer. It listens for all IP packets across all ports and forwards traffic to the target group that's specified in the listener rule. The Gateway Load Balancer and its registered virtual appliance instances exchange application traffic using the GENEVE protocol on port 6081. It supports a maximum transmission unit (MTU) size of 8500 bytes.

Classic Load Balancer: A previous generation load balancer distributes incoming application traffic across multiple EC2 instances in multiple Availability Zones. This increases the fault tolerance of your applications. Elastic Load Balancing detects unhealthy instances and routes traffic only to healthy instances.A listener checks for connection requests from clients, using the protocol and port that you configure, and forwards requests to one or more registered instances using the protocol and port number that you configure.

Cross-Zone Load Balancing:

If cross-zone load balancing is disabled:

  • Each of the two targets in AZ - 1 receives 8.33% of the traffic.
  • Each of the eight targets in AZ - 2 receives 12.5% of the traffic.

This is because each load balancer node can route its 50% of the client traffic only to targets in its Availability Zone.

If cross-zone load balancing is enabled, each of the 10 targets receives 10% of the traffic. This is because each load balancer node can route its 50% of the client traffic to all 10 targets.

Amazon EC2 Auto Scaling:

Amazon EC2 Auto Scaling helps you ensure that you have the correct number of Amazon EC2 instances available to handle the load for your application. You create collections of EC2 instances, called Auto Scaling groups.

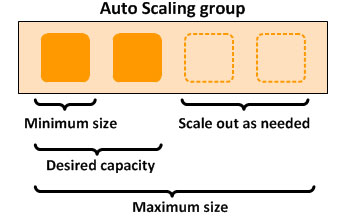

You can specify the minimum number of instances in each Auto Scaling group, and Amazon EC2 Auto Scaling ensures that your group never goes below this size. You can specify the maximum number of instances in each Auto Scaling group, and Amazon EC2 Auto Scaling ensures that your group never goes above this size.

The components of Amazon EC2 Auto Scaling:

Groups: Your EC2 instances are organized into groups so that they can be treated as a logical unit for the purposes of scaling and management. When you create a group, you can specify its minimum, maximum, and, desired number of EC2 instances.

Configuration templates: Your group uses a launch template, or a launch configuration (not recommended, offers fewer features), as a configuration template for its EC2 instances. You can specify information such as the AMI ID, instance type, key pair, security groups, and block device mapping for your instances.

Scaling options: Amazon EC2 Auto Scaling provides several ways for you to scale your Auto Scaling groups. For example, you can configure a group to scale based on the occurrence of specified conditions (dynamic scaling) or on a schedule.

AWS Lambda:

AWS Lambda is a serverless compute service that lets you run code without provisioning or managing servers, creating workload-aware cluster scaling logic, maintaining event integrations, or managing runtimes.With AWS Lambda, you can run code without provisioning or managing servers. You pay only for the compute time that you consume—there’s no charge when your code isn’t running. You can run code for virtually any type of application or backend service—all with zero administration. Just upload your code and Lambda takes care of everything required to run and scale your code with high availability. You can set up your code to automatically trigger from other AWS services or call it directly from any web or mobile app.

Amazon CloudFront:

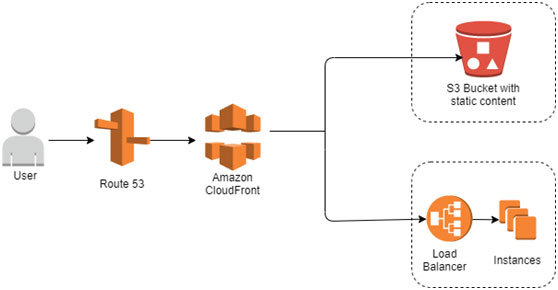

Amazon CloudFront is a fast content delivery network (CDN) service that securely delivers data, videos, applications, and APIs to customers globally with low latency, high transfer speeds, all within a developer-friendly environment.CloudFront delivers it through a worldwide network of edge locations that provide low latency and high performance.

  • If the content is already in the edge location with the lowest latency, CloudFront delivers it immediately.
  • If the content is not in that edge location, CloudFront retrieves it from an origin that you've defined—such as an Amazon S3 bucket, a MediaPackage channel, or an HTTP server (for example, a web server)

A cache hit occurs when a viewer request generates the same cache key as a prior request, and the object for that cache key is in the edge location’s cache and valid. When there’s a cache hit, the object is served to the viewer from a CloudFront edge location, which has the following benefits:

  • Reduced load on your origin server.
  • Reduced latency for the viewer.

Amazon Route 53:

A reliable and cost-effective way to route end users to Internet applications. Amazon Route 53 is a highly available and scalable cloud Domain Name System (DNS) web service. It is designed to give developers and businesses an extremely reliable and cost effective way to route end users to Internet applications by translating names like www.example.com into the numeric IP addresses like 192.0.2.1 that computers use to connect to each other. Amazon Route 53 is fully compliant with IPv6 as well.

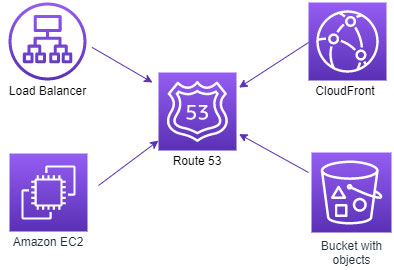

Amazon Route 53 effectively connects user requests to infrastructure running in AWS – such as Amazon EC2 instances, Elastic Load Balancing load balancers, or Amazon S3 buckets – and can also be used to route users to infrastructure outside of AWS. You can use Amazon Route 53 to configure DNS health checks to route traffic to healthy endpoints or to independently monitor the health of your application and its endpoints.

Routing Policies:

  • Simple routing policy – Use for a single resource that performs a given function for your domain, for example, a web server that serves content for the example.com website.
  • Failover routing policy – Use when you want to configure active-passive failover.
  • Geolocation routing policy – Use when you want to route traffic based on the location of your users.
  • Geoproximity routing policy – Use when you want to route traffic based on the location of your resources and, optionally, shift traffic from resources in one location to resources in another.
  • Latency routing policy – Use when you have resources in multiple AWS Regions and you want to route traffic to the region that provides the best latency.
  • Multivalue answer routing policy – Use when you want Route 53 to respond to DNS queries with up to eight healthy records selected at random.
  • Weighted routing policy – Use to route traffic to multiple resources in proportions that you specify.

Amazon RDS:

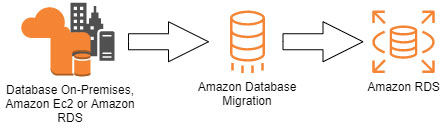

Amazon Relational Database Service (Amazon RDS) is a web service that makes it easier to set up, operate, and scale a relational database in the cloud. It provides cost-efficient, resizable capacity for an industry-standard relational database and manages common database administration tasks.

Amazon RDS is available on several database instance types - optimized for memory, performance or I/O - and provides you with six familiar database engines to choose from. You can use the AWS Database Migration Service to easily migrate or replicate your existing databases to Amazon RDS.

Amazon RDS database engines:

Amazon S3 (Simple Storage Service):

An object storage service that offers industry-leading scalability, data availability, security, and performance. This means customers of all sizes and industries can use it to store and protect any amount of data for a range of use cases, such as data lakes, websites, mobile applications, backup and restore, archive, enterprise applications, IoT devices, and big data analytics. Amazon S3 provides easy-to-use management features so you can organize your data and configure finely-tuned access controls to meet your specific business, organizational, and compliance requirements. Amazon S3 is designed for 99.999999999% (11 9's) of durability, and stores data for millions of applications for companies all around the world.

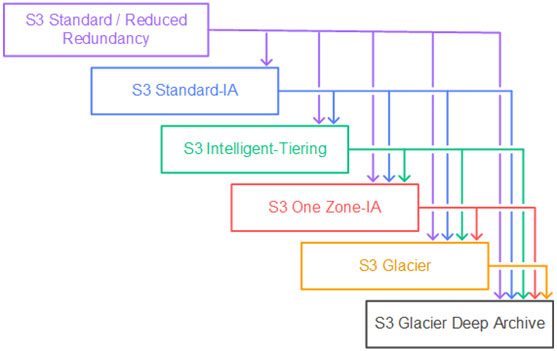

Amazon S3 supports a waterfall model for transitioning between storage classes, as shown in the following diagram.

Amazon S3 Access Points:

A feature of S3, simplifies managing data access at scale for applications using shared data sets on S3. Access points are unique hostnames that customers create to enforce distinct permissions and network controls for any request made through the access point.

Customers with shared data sets including data lakes, media archives, and user-generated content can easily scale access for hundreds of applications by creating individualized access points with names and permissions customized for each application. Any access point can be restricted to a Virtual Private Cloud (VPC) to firewall S3 data access within customers’ private networks, and AWS Service Control Policies can be used to ensure all access points are VPC restricted.

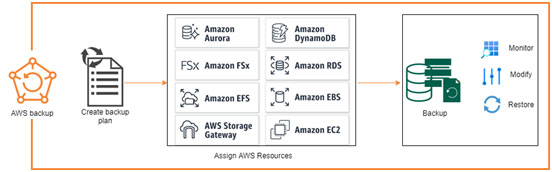

AWS Backup:

AWS Backup is a fully managed backup service that makes it easy to centralize and automate the backup of data across AWS services. Using AWS Backup, you can centrally configure backup policies and monitor backup activity for AWS resources, such as Amazon EBS volumes, Amazon EC2 instances, Amazon RDS databases, Amazon DynamoDB tables, Amazon EFS file systems, Amazon FSx file systems, and AWS Storage Gateway volumes.

AWS Backup automates and consolidates backup tasks previously performed service-by-service, removing the need to create custom scripts and manual processes. With just a few clicks in the AWS Backup console, you can create backup policies that automate backup schedules and retention management. AWS Backup provides a fully managed, policy-based backup solution, simplifying your backup management, enabling you to meet your business and regulatory backup compliance requirements.

Amazon CloudWatch:

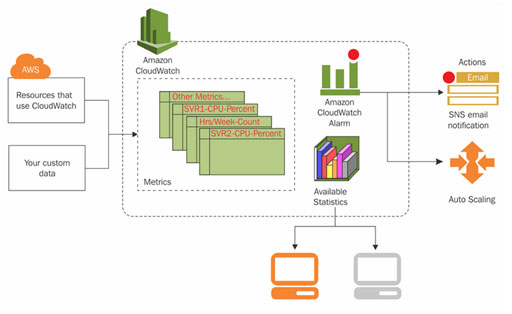

AmazonCloudWatch provides a reliable, scalable, and flexible monitoring solution that you can start using within minutes. You no longer need to set up, manage, and scale your own monitoring systems and infrastructure.

CloudWatch collects monitoring and operational data in the form of logs, metrics, and events, and visualizes it using automated dashboards so you can get a unified view of your AWS resources, applications, and services that run in AWS and on-premises. You can correlate your metrics and logs to better understand the health and performance of your resources.

Amazon CloudWatch enables you to set alarms and automate actions based on either predefined thresholds, or on machine learning algorithms that identify anomalous behavior in your metrics. For example, it can start Amazon EC2 Auto Scaling automatically, or stop an instance to reduce billing overages. You can also use CloudWatch Events for serverless to trigger workflows with services like AWS Lambda, Amazon SNS, and AWS CloudFormation.

AWS IAM(Identity and Access Management):

AWS Identity and Access Management (IAM) enables you to manage access to AWS services and resources securely. Using IAM, you can create and manage AWS users and groups, and use permissions to allow and deny their access to AWS resources.IAM is a feature of your AWS account offered at no additional charge. You will be charged only for use of other AWS services by your users.

IAM assists in creating roles and permissions

AWS IAM allows you to:

  • Manage IAM users and their access – You can create users in IAM, assign them individual security credentials (in other words, access keys, passwords, and multi-factor authentication devices), or request temporary security credentials to provide users access to AWS services and resources. You can manage permissions in order to control which operations a user can perform.
  • Manage IAM roles and their permissions – You can create roles in IAM and manage permissions to control which operations can be performed by the entity, or AWS service, that assumes the role. You can also define which entity is allowed to assume the role. In addition, you can use service-linked roles to delegate permissions to AWS services that create and manage AWS resources on your behalf.
  • Manage federated users and their permissions – You can enable identity federation to allow existing identities (users, groups, and roles) in your enterprise to access the AWS Management Console, call AWS APIs, and access resources, without the need to create an IAM user for each identity.

AWS Command Line Interface:

The AWS Command Line Interface (AWS CLI) is a unified tool that provides a consistent interface for interacting with all parts of AWS. AWS CLI commands for different services are covered in the accompanying user guide, including descriptions, syntax, and usage examples.With just one tool to download and configure, you can control multiple AWS services from the command line and automate them through scripts.
